PRODUCTS > Carbon Steel Square Tube
  • 4.3.3碳钢方管1.jpg

Carbon Steel Square Tube

Pipe Type:Carbon Steel Square Tube, Carbon Steel rectangular Tube, Square Carbon Hollow Section, Rectangular Carbon Hollow Section
Standard: ASTM A500, ASTM A53, EN 10210, EN 10219, JIS G 3466, BS 1387, BS 6323;GB: Q195, Q215, Q235, Q345; ASTM: GR A, GR B, GR C, GR D, DC01, DC03, 1008, 1010 JIS: SS330, SS440, SS490, SPHD, SPHE; EN BS: S185, S235, S235JR, S235 G2H, S275, S275JR, S355JRH, S355J2H
Process Type: Hot Rolled/Hot Expanded, Electric Resistance/High Frequency,Cold rolled , Annealed(welded),
End: Square Cut, Burr Removed
Surface: Bare, Black Painting, Lightly Oiled,Black annealing,Galvanized
Application: In Industrial Construction, Machinery/Rack/Container manufacturing

Specification:

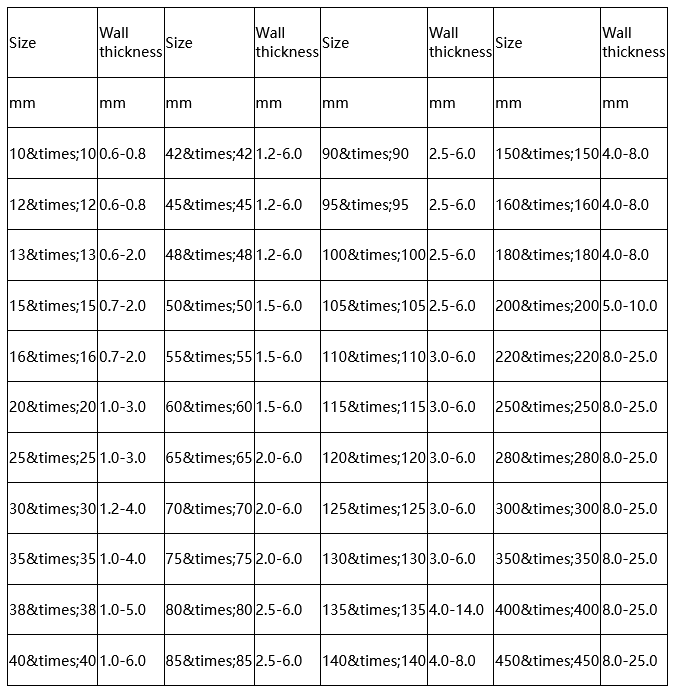

Size chart of mild steel square tube




Standard chart:
